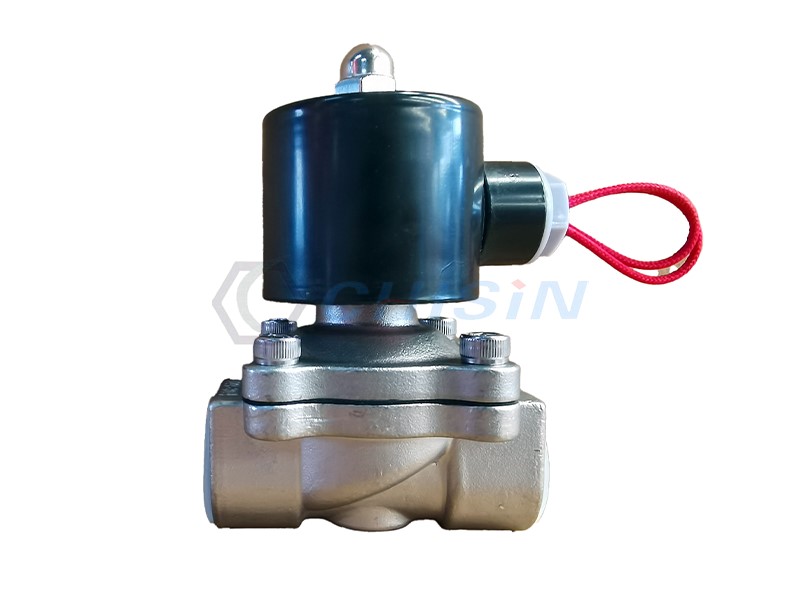

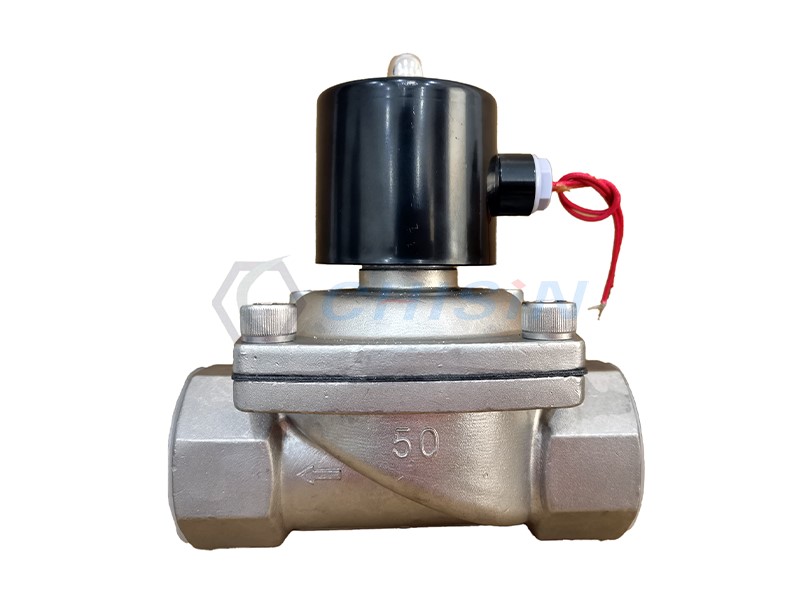

2S heavy-duty water solenoid valve

All coils of solenoid valves are made of copper wire.

Name:2S threaded solenoid valve

The valve body is thicker and has a larger flow rate than the 2W series.

Specification size:DN15-DN50(1/2—2)

Type:Direct acting type, using diaphragm sealing

Connection method:threaded

Manufacturing standardsGB or according to customer needs

body material:SS304/CF8,Other materials need to be customized

Voltage: AC220V or DC24V, other voltages need to be customized

Sealing material:NBR(in common) or FKM

Working pressure:0-1.0Mpa

Medium:water, oil, gas, vacuum (to be informed in advance)

Medium temperature:-5-80℃

Optional:Can be made into normally open, explosion-proof, waterproof, and vertical installation types.



All coils of solenoid valves are made of copper wire.
