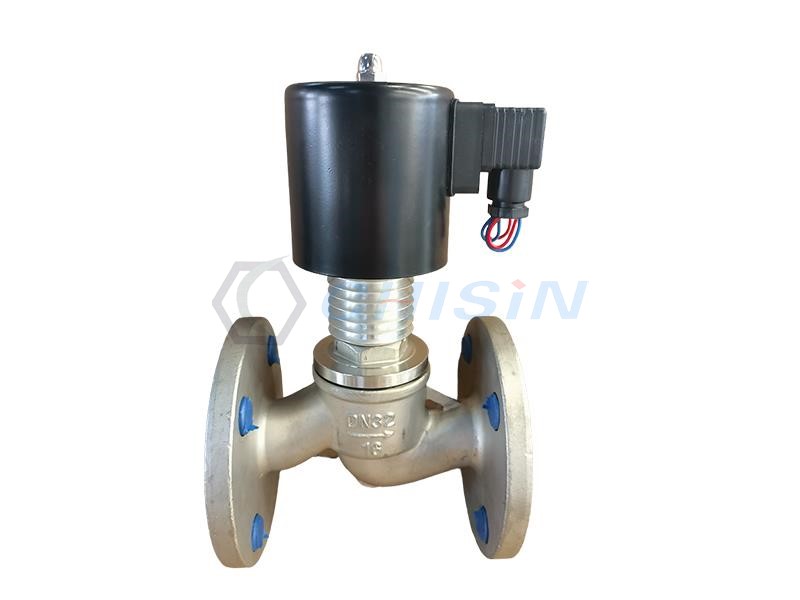

Name:High temperature solenoid valve
Specification size:DN15-DN65,DN65-DN100 or bigger
Type:(DN15-DN65)Direct acting type, using piston seals
(DN65-DN100 or bigger)Pilot type, using piston seals
Connection method:flange
Manufacturing standards:GB or according to customer needs
body material:SS304/CF8,Other materials need to be customized
Voltage: AC220V or DC24V, other voltages need to be customized
Sealing material:PTFE
Working pressure:0-1.6Mpa,0.05-1.6Mpa
Medium:water, oil, gas
Medium temperature:≤280℃(Equipped with heat sink)
Optional:Can be made into normally open, explosion-proof, waterproof types.
All coils of solenoid valves are made of copper wire.
