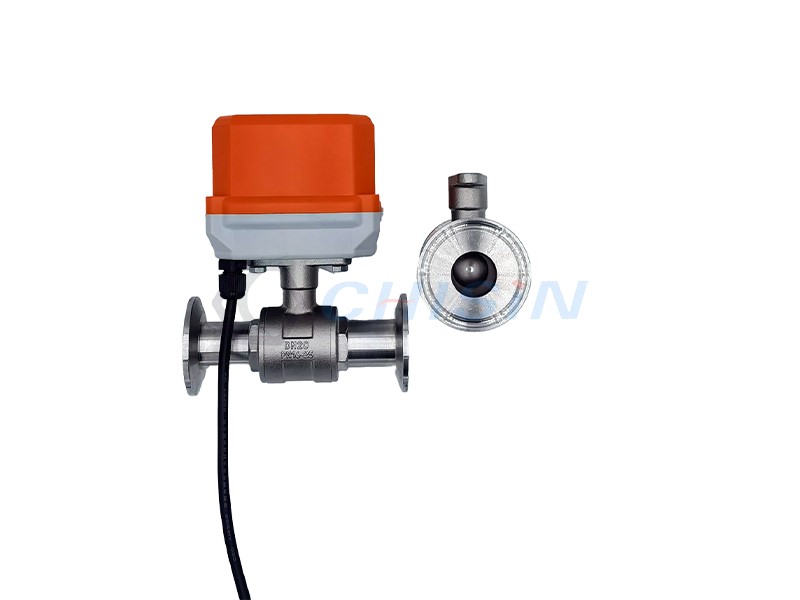

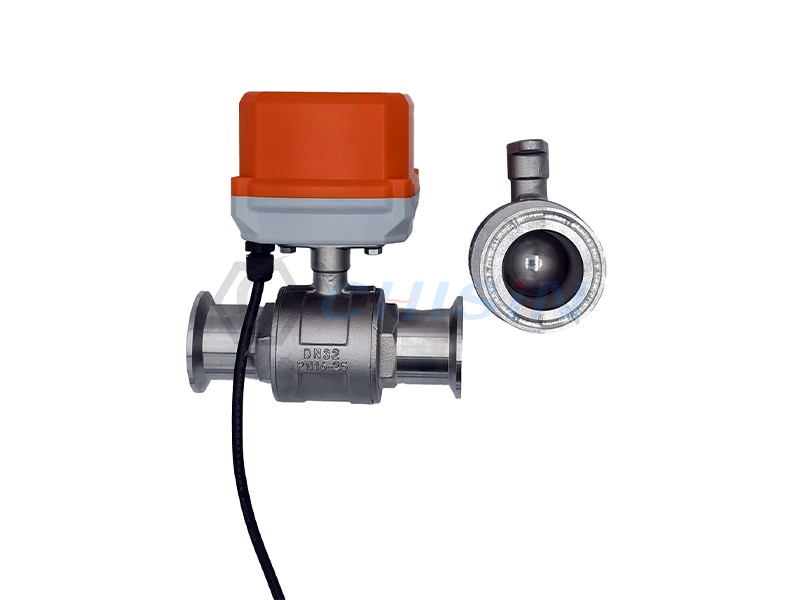

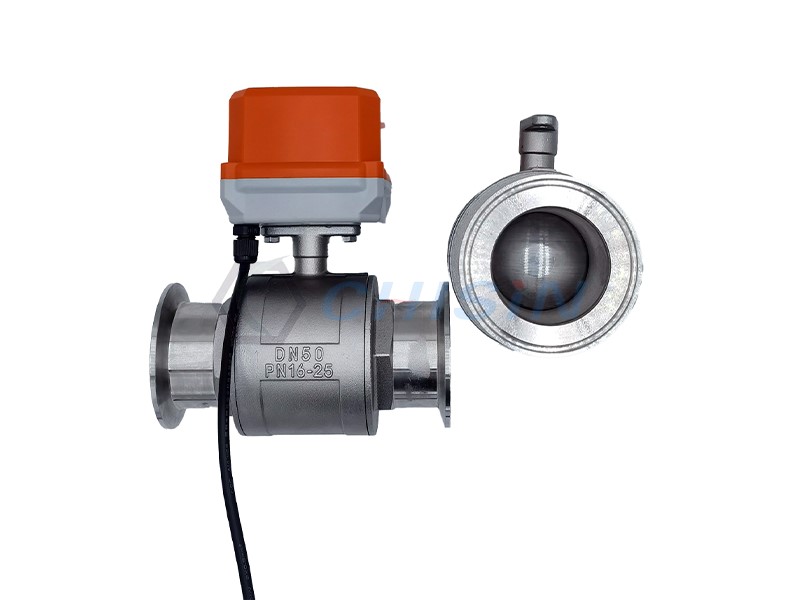

Quick-install electric ball valve

Name：Quick electric ball valve

Specification size：DN15-DN50（1/2—2）

Connection method：quick installation

Manufacturing standards：GB or according to customer needs

Wiring method：Two options

2.Three wire two control

Opening and closing time：1s-12s，3s in common

body material：SS304/CF8，Other materials need to be customized

waterproof level：IP67

Voltage: AC90V-AC220V or DC9V-DC36V, other voltages need to be customized

Sealing material：NBR（in common）or FKM

Working pressure：0-1.0Mpa

Medium：water, oil, gas, vacuum (to be informed in advance)

Medium temperature：-5-80℃

Optional：1.normally open type

         2.vacuum type
