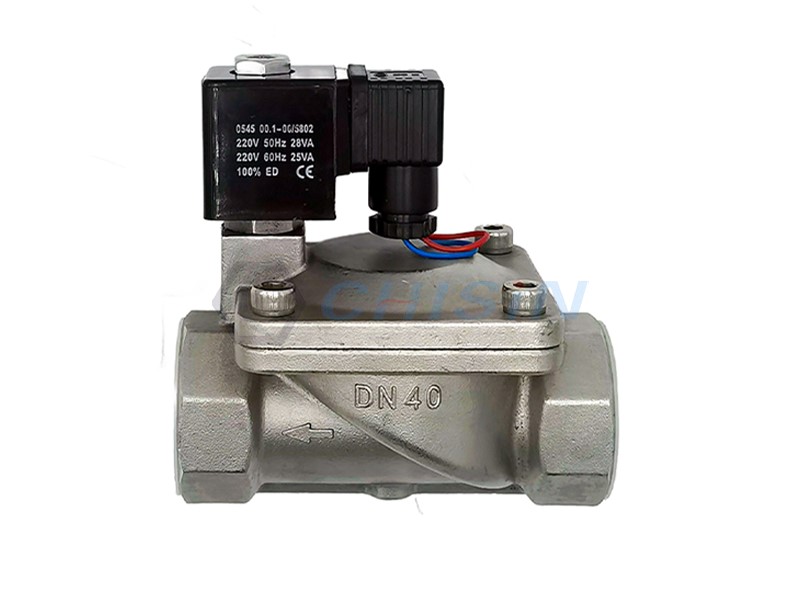

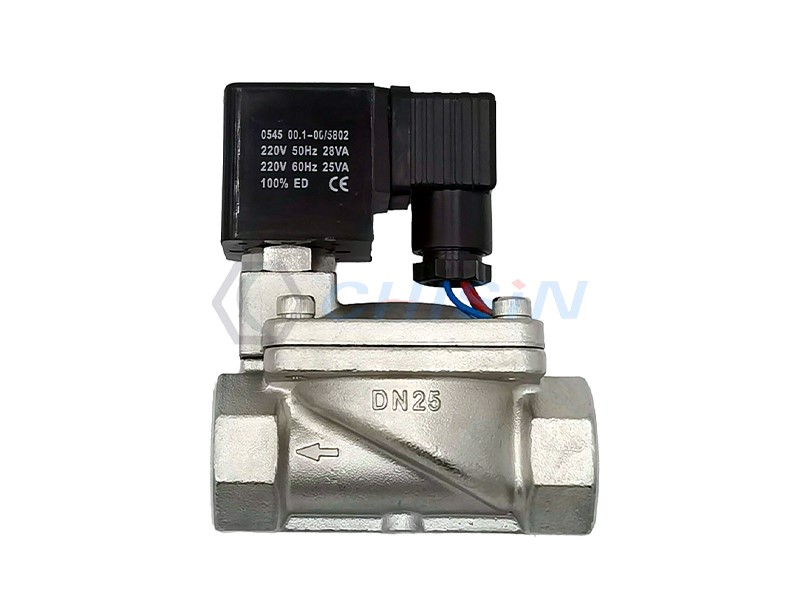

SLP pilot operated solenoid valve

All coils of solenoid valves are made of copper wire.

Name:SLP pilot operated solenoid valve

Specification size:DN15-DN50(1/2-2)

Type:Pilot operated, using diaphragm sealing

Connection method:threaded

Manufacturing standardsGB or according to customer needs

body material:SS304/CF8,Other materials need to be customized

Voltage: AC220V or DC24V, other voltages need to be customized

Sealing material:NBR(in common) or FKM

Working pressure:0.05-1.6Mpa

Medium:water, oil, gas

Medium temperature:-5-80℃

Optional:Can be made into explosion-proof and waterproof.



All coils of solenoid valves are made of copper wire.
