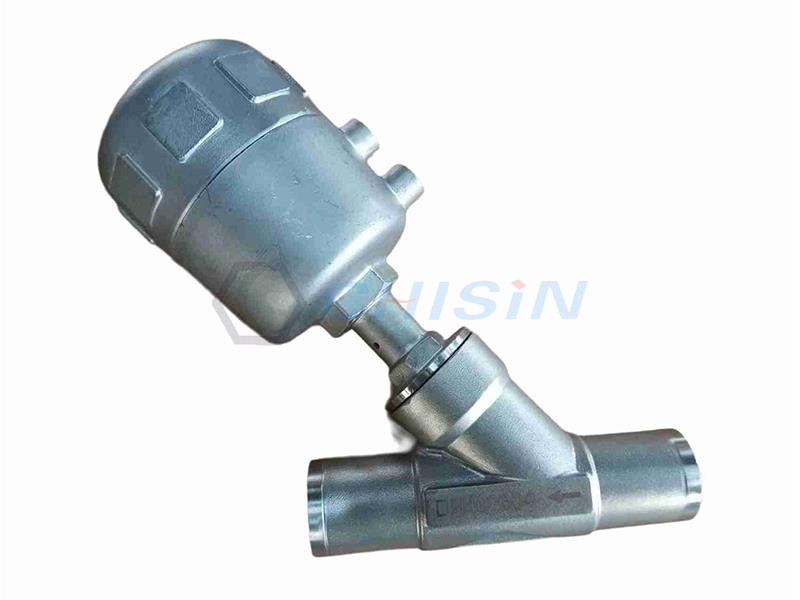

Name:Pneumatic welding angle seat valve
Specification size:DN15-DN100(1/2—4)(φ19-φ108)
Connection method:Welding
Manufacturing standards:GB or according to customer needs
Pneumatic actuator material:PA or SS304
body material:SS304/CF8,Other materials need to be customized
Sealing material:PTFE or PPL
Working pressure:0-1.6Mpa,0-2.5Mpa
Medium:water,liquid, oil, gas, vacuum (to be informed in advance)
Medium temperature:-10-130℃,-10-180℃
Optional:
1.Normally open type
2.Non spring double acting type
- Waterproof hammer type
4.Switch signal feedback type
5.Adjustable type.
characteristic
- The valve adopts a movable piston, which can be repeatedly disassembled and installed without leakage
- The angle seat valve we produce can be used for both single acting and double acting applications.
