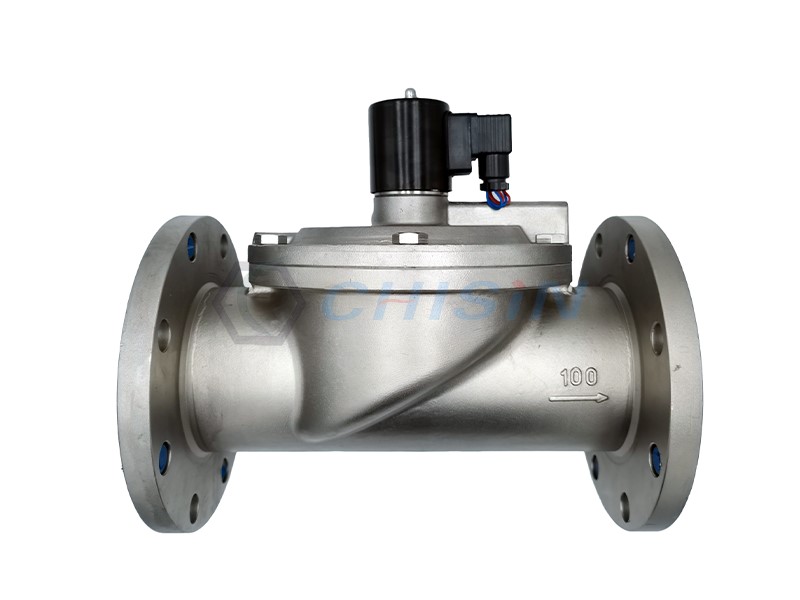

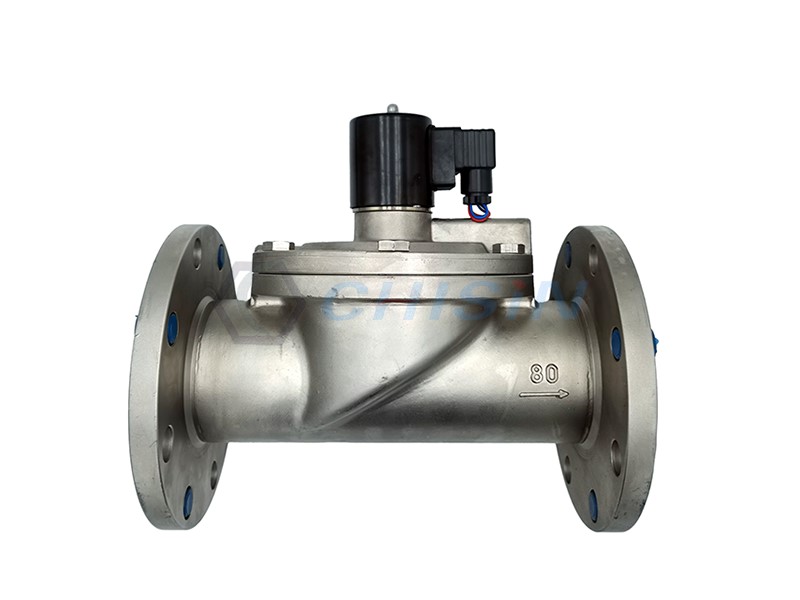

Name:ZCS series flange solenoid valve
Specification size:DN80,DN100
Type:Pilot operated, using diaphragm sealing
Connection method:flange
Manufacturing standards:GB or according to customer needs
body material:SS304/CF8,Other materials need to be customized
Voltage: AC220V or DC24V, other voltages need to be customized
Sealing material:NBR(in common) or FKM
Working pressure:0.05-1.0Mpa
Medium:water, oil, gas
Medium temperature:-5-80℃
Optional:Can be made into normally open, explosion-proof, waterproof, and vertical installation types.
All coils of solenoid valves are made of copper wire.
