Flange connection

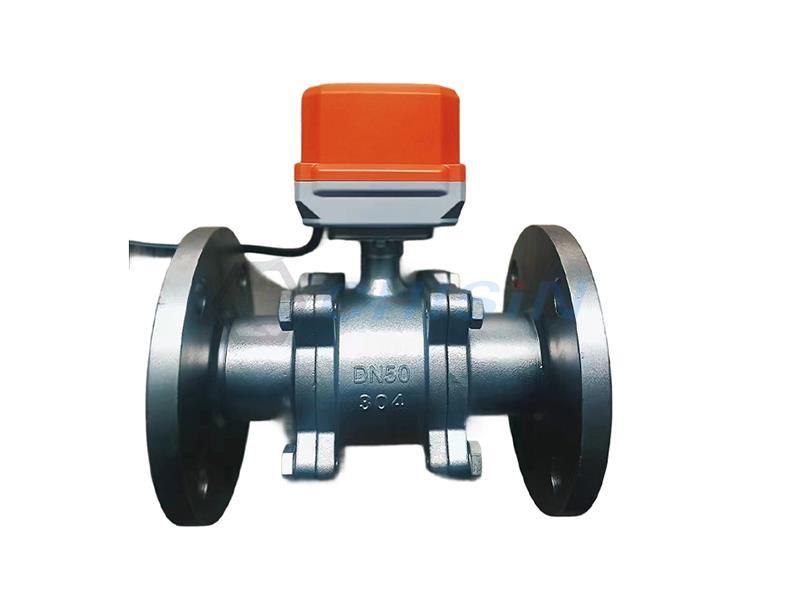

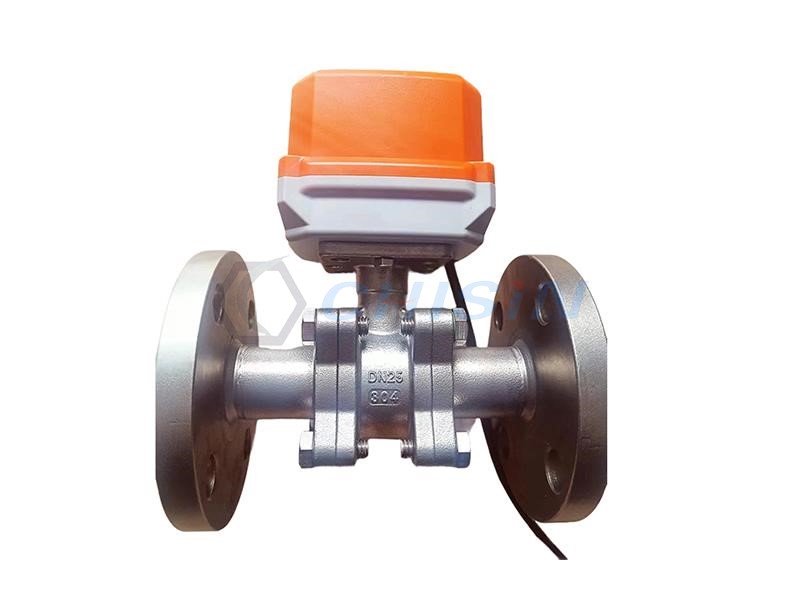

Name:Quick electric ball valve

Specification size:DN15-DN50(1/2—2)

Connection method:flange

Manufacturing standardsGB or according to customer needs

Wiring methodTwo options

1.Two Wire Automatic Reset

2.Three wire two control

Opening and closing time:1s-12s,3s in common

body material:SS304/CF8,Other materials need to be customized

waterproof levelIP67

Voltage: AC90V-AC220V or DC9V-DC36V, other voltages need to be customized

Sealing material:NBR(in common)or FKM

Working pressure:0-1.0Mpa

Medium:water, oil, gas, vacuum (to be informed in advance)

Medium temperature:-5-80℃

Optional:1.normally open type

         2.vacuum type



If you have any enquiry about quotation or cooperation,please feel free to email us at or use the following enquiry form. Our sales will contact you within 24 hours. Thank you for your interest in our products.
