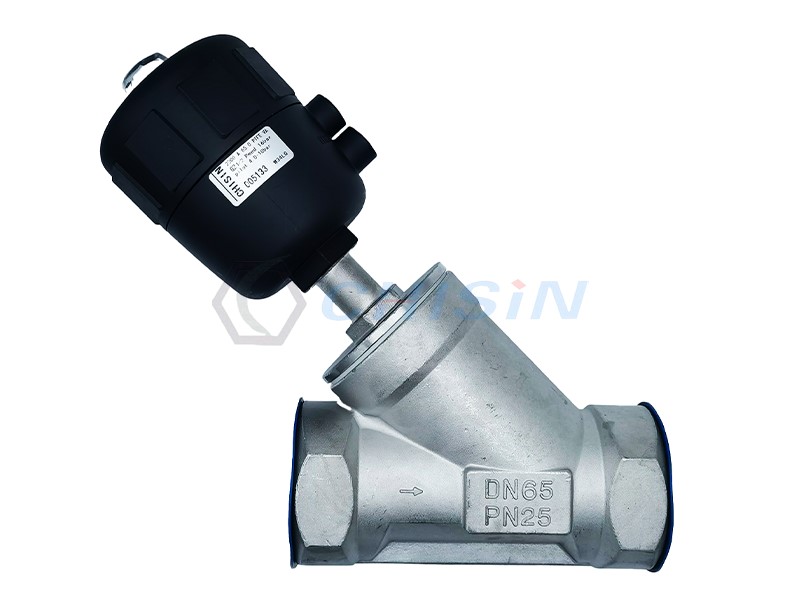

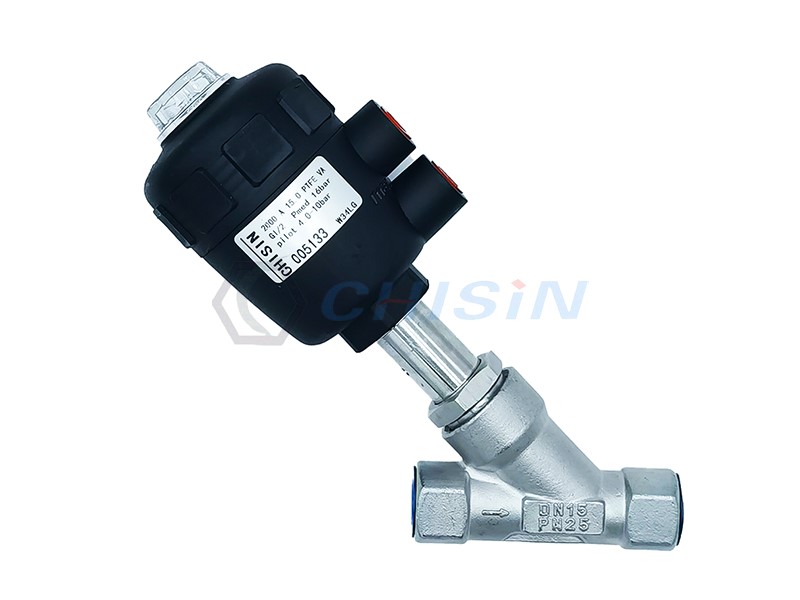

Name：Pneumatic threaded angle seat valve
Specification size：DN15-DN65（1/2—2-1/2）
Connection method：Threaded
Manufacturing standards：GB or according to customer needs
Pneumatic actuator material：PA or SS304
body material：SS304/CF8，Other materials need to be customized
Sealing material：PTFE or PPL
Working pressure：0-1.6Mpa，0-2.5Mpa
Medium：water，liquid, oil, gas, vacuum (to be informed in advance)
Medium temperature：-10-130℃，-10-180℃
Optional：
1.Normally open type
2.Non spring double acting type
- Waterproof hammer type
4.Switch signal feedback type
5.Adjustable type.
characteristic
- The valve adopts a movable piston, which can be repeatedly disassembled and installed without leakage
- The angle seat valve we produce can be used for both single acting and double acting applications.
