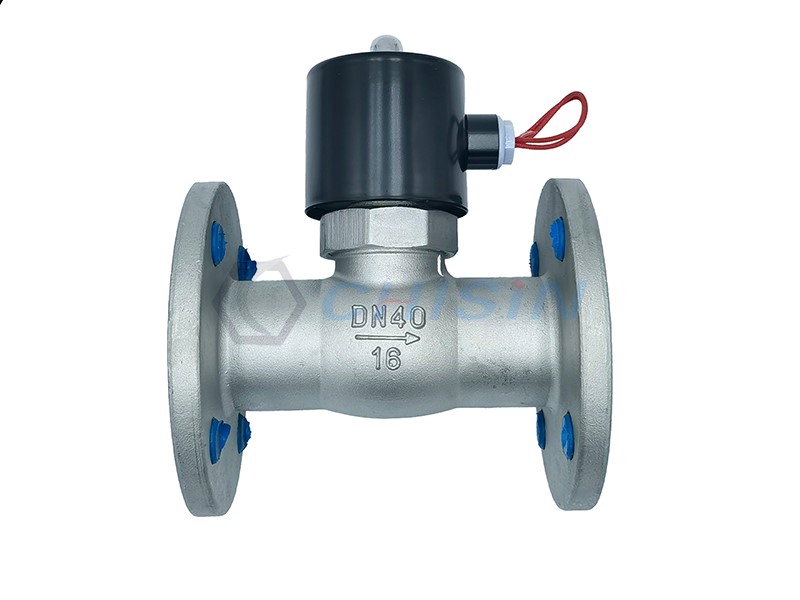

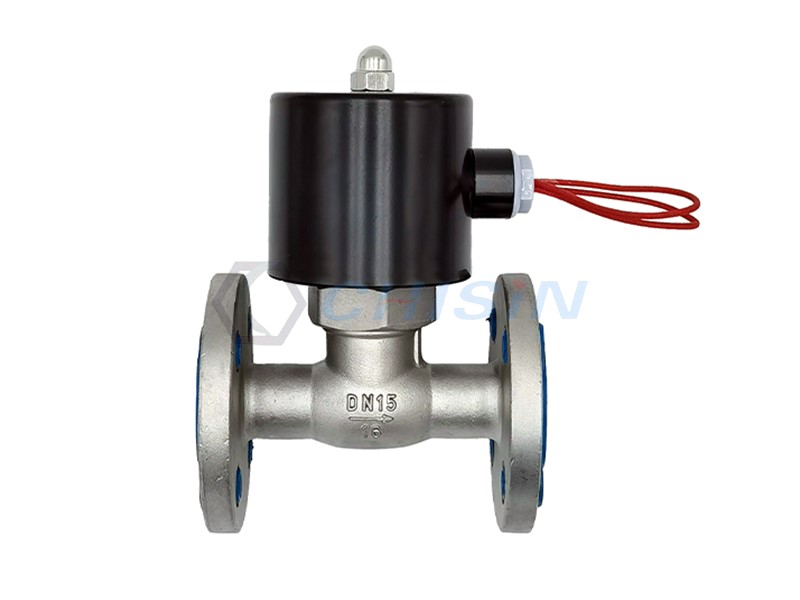

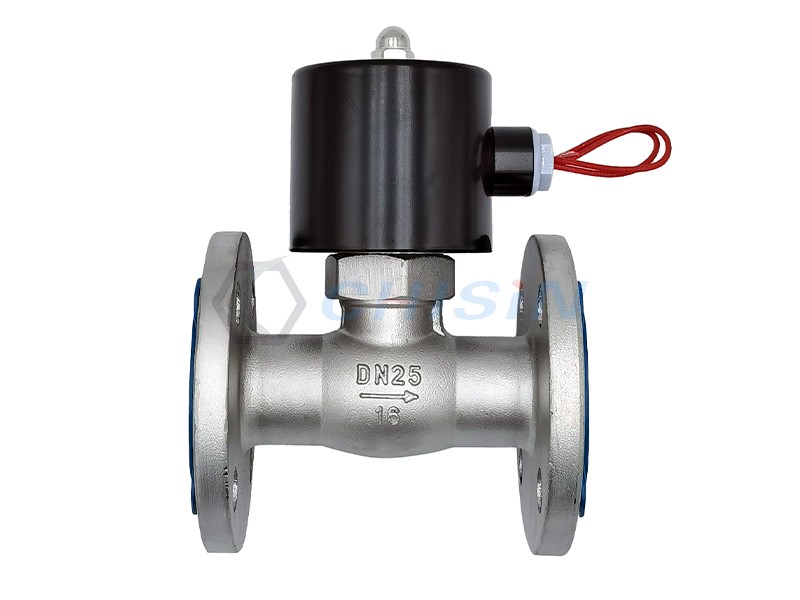

Name：US series threaded steam solenoid valve
Specification size：DN15-DN50（1/2—2）
Type：Pilot operated, using piston seals
Connection method：flange
Manufacturing standards：GB or according to customer needs
body material：SS304/CF8，Other materials need to be customized
Voltage: AC220V or DC24V, other voltages need to be customized
Sealing material：PTFE
Working pressure：0.05-1.6Mpa
Medium：water, oil, gas
Medium temperature：≤180℃
Optional：Can be made into normally open, explosion-proof, waterproof.
All coils of solenoid valves are made of copper wire.
