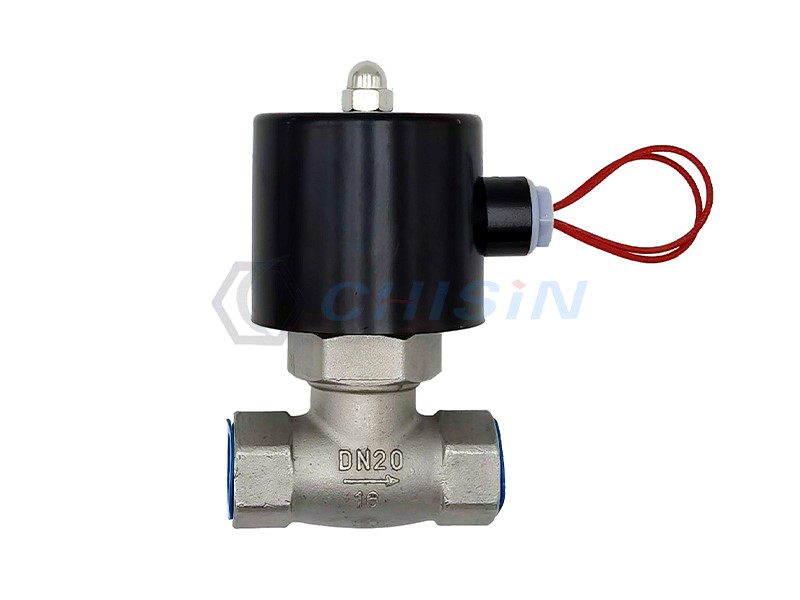

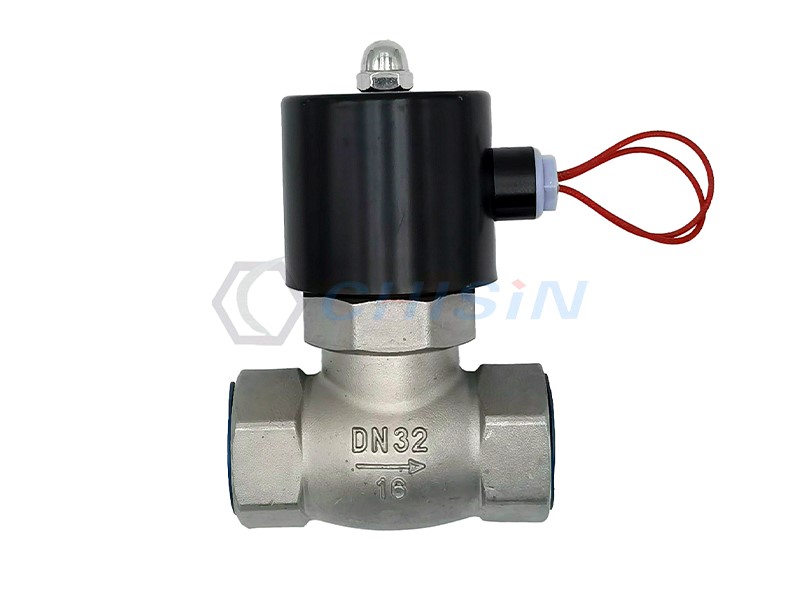

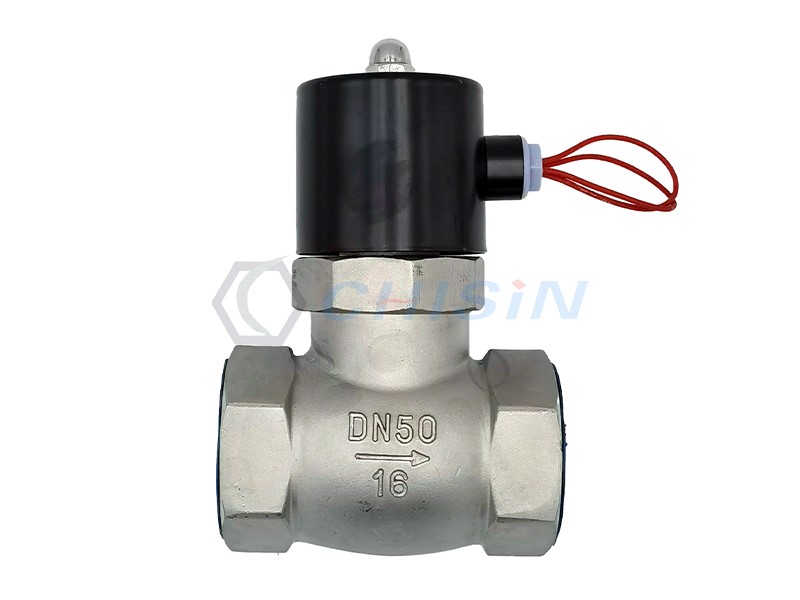

Name:US series threaded steam solenoid valve
Specification size:DN15-DN50(1/2—2)
Type:Pilot operated, using piston seals
Connection method:threaded
Manufacturing standards:GB or according to customer needs
body material:SS304/CF8,Other materials need to be customized
Voltage: AC220V or DC24V, other voltages need to be customized
Sealing material:PTFE
Working pressure:0.05-1.6Mpa
Medium:water, oil, gas
Medium temperature:≤180℃
Optional:Can be made into normally open, explosion-proof, waterproof.
All coils of solenoid valves are made of copper wire.
